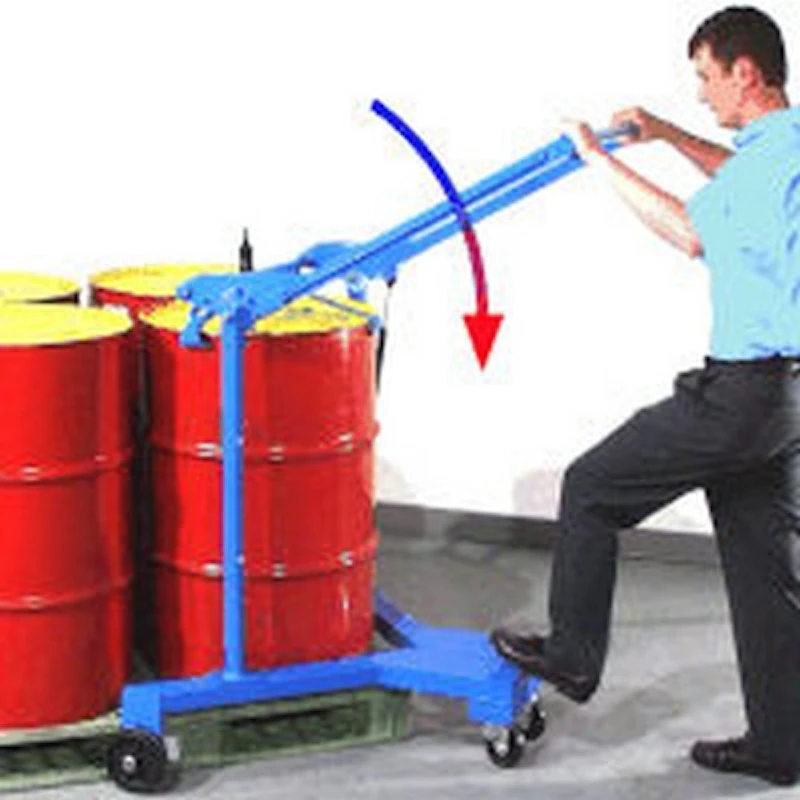

Roll the Drum-Spotter to the drum and raise the handle so the alloy hooks engage the drum below the rim. The handle length provides adequate leverage to lift heavy drums. Lift the drum by lowering the handle. Once the drum is raised, ratchets maintain handle position. The drum stays upright to wheel away. Place the drum on a pallet or the floor. It is designed for use with rimmed drums: 22" to 23-1/2" (56 cm to 60 cm) diameter, 34" to 36" (86-92 cm) tall, closed 55 gallon (210 liter) steel tight-head or removable top type, many popular 55 gallon plastic drums, and many fibre drums with clamp-on lids.
- Lift drum from corner of pallet or from floor
- Capacity: 800 lbs. (363 kg)
- Base has built-in counterweight for stability
- Two 6" (15 cm) polyolefin wheels at the front
- Two 4" (10 cm) rear swivel casters for easy steering
- Overall height with handle raised: 74-5/32" (188.4 cm)
- Overall height with handle down: 47-9/32" (120.1 cm)
- Overall Length with handle horizontal: 43-7/32" (109.8 cm)
- Length of base: 32-5/16" (82.1 cm)
- Maximum pallet height: 6" (15 cm)
