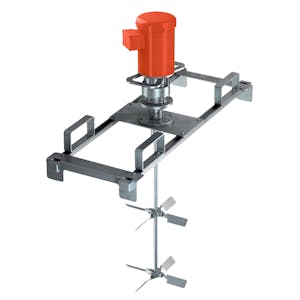

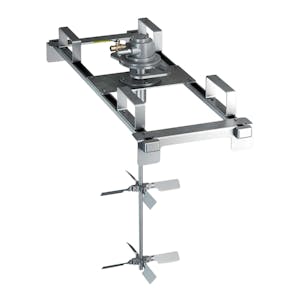

These mixers feature collapsible impellers for easy installation through small openings while ensuring efficient mixing in tote containers. Ideal for totes with a 6" center cap (IBC), the bridge mount secures the bridge to any tote. Designed to be portable, this mixer can be applied at each stage of your product life cycle: processing, storage, shipping, and, most importantly, the end-user's facility. Our unique collapsible impeller technology enables overall mixing previously impossible in tote containers. This series of mixers allows you to buy a single drive segment and use it on multiple totes with dedicated agitator segments. These mixers also overcome the traditional 6" opening, enabling up to 21" in diameter impeller; a large blade provides the pumping and tank turnover required to bring your product back into specification. Separable drive segments can enable single-person installation and removal as well as reduce contamination. Custom configurations for solution assurance, process guarantee, and 3-phase are available; contact us for a quote.
- Variable Speed Electric Motor 0.5HP @1750 RPM TEFC
- Electric Phase: 1/60/110V
- Gear Box: Gear Reducer 11 to 1 ratio @159 RPM
- Shaft Dia.: 1"
- Impellar Type: Collapsible Pitched
- Impellar Dia.: 14"
- Max. Viscosity: 3000 cps
- 316SS Shaft & Impellers
- Bridge mount expands to 60"
