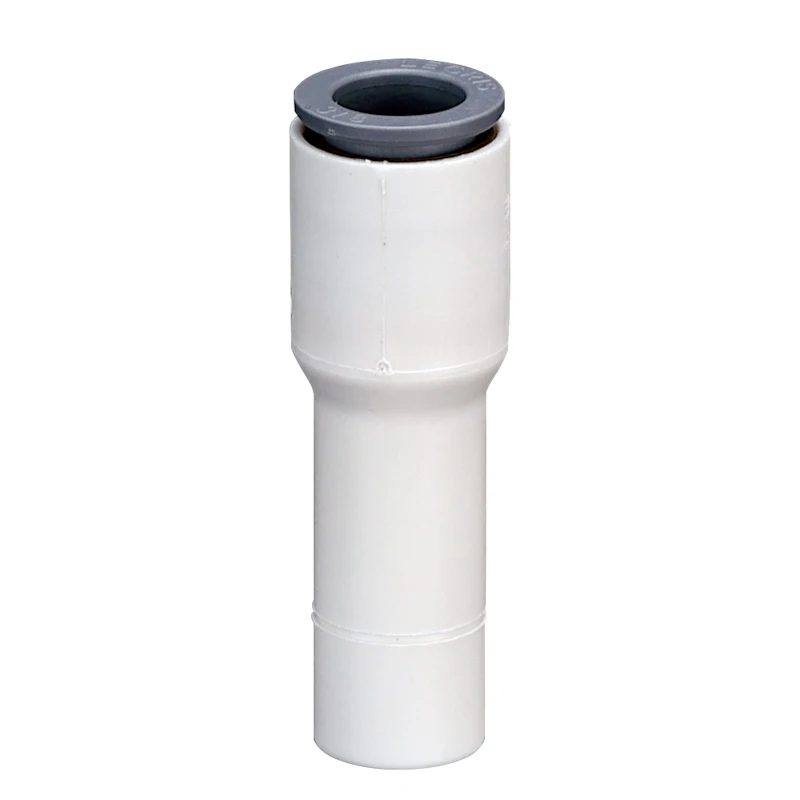

LIQUIfit™ fittings offer an innovative alternative for water applications. No fluid contamination occurs, and environmental protection is guaranteed. Typical applications for these fittings include water purification systems, water dispensers, drink dispensers, cooling systems, food processing, and CO2. Connect - Push the tubing until it bottoms out. Holding and sealing are accomplished instantaneously. Disconnect - First, depress the manual release button, then pull the tubing out of the fitting.
- White nylon 11
- D-shaped EPDM seals
- SS gripping ring eliminates locking clips
- 1/5th the CO2 emissions of an acetal fitting
- Full flow profile delivers maximum capability
- Compact design facilitates the tightest tube bends
- Work. pressure @ 73°F: 230 psi (1/4"), 190 psi (3/8") & 160 psi (1/2")
- Temperature range: 35°F to 200°F
- Meets FDA & NSF 51 & 61 standards
- Dimensions: 2.01" overall length x 1.18" protrudes from fitting when inserted (0.63" outside dia.)
