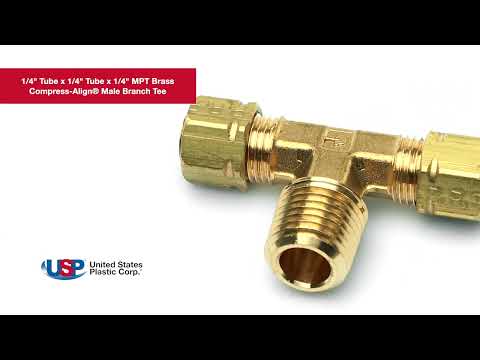

Compress-Align fittings require no flaring, soldering, or other preparation of tubing. The captive sleeve orients for correct installation, visible for inspection before and after installation. The fittings are universal in markets like industrial, packaging, pneumatic, printing, and chemical. Applications include airlines, lubrication lines, fluid transfer, chemical dispensing, cooling lines, and machine tools. Assembly Instructions: With nut finger tight on the body, insert the tubing until it bottoms in the fitting. Complete the seal with one wrench turn on all sizes.
- Brass fitting & nut
- Captive sleeve
- Use with copper, aluminum, TFE, FEA, PFA & thermoplastic tubing
- UL listed for flammable liquids
- NPTF thread
- Max pressure rating: 1,400 psi
- Temperatures range: -65°F to 250°F
- Dimensions: 1.86" long x 0.93" center line to compression ends x 0.92" center line to thread end
- Diameter flow: 0.188"
- Compression end: 7/16-24 straight thread
