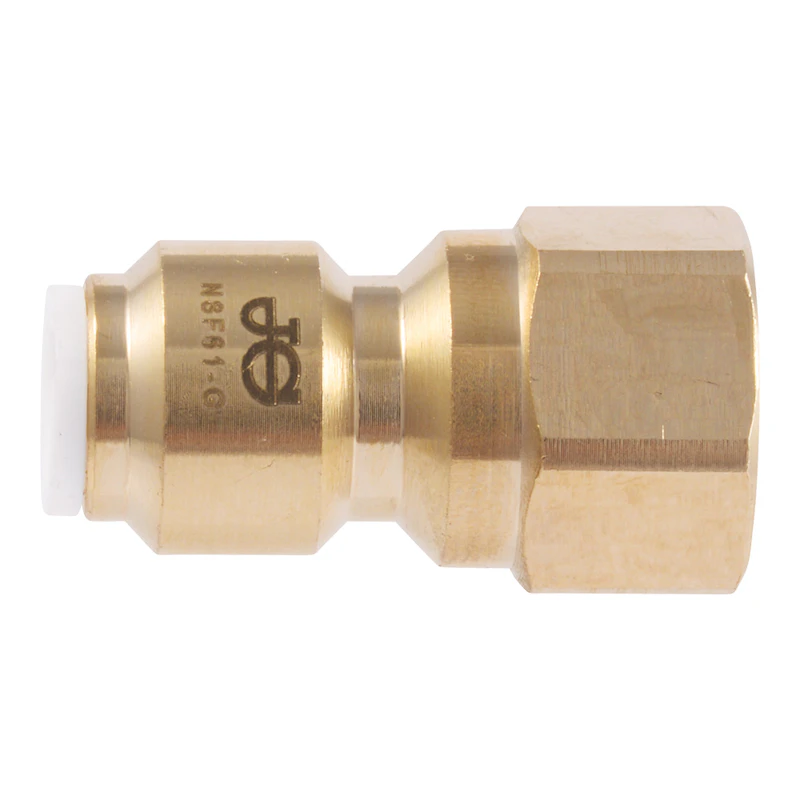

These push-to-connect fittings are designed for use in coffee brewing equipment, beverage dispensing, and vending machine applications.
- Brass body with polypropylene collet
- 90411 has a polypropylene body; threaded brass ring is not a wetted surface
- 58771 & 59732 have a polysulfone body; 58771 has a brass compression end
- Food-grade EPDM O-ring; Wetted brass is lead free
- For use with plastic or copper OD-sized tubing; Connect & disconnect tubing without tools
- Not suitable for compressed air
- Maximum pressure: 150 psi at 70°F, 60 psi at 140°F
- Maximum pressure: 160 psi at 73°F, 100 psi at 180°F (58771 & 59732 only)
- Temperature range: 33°F to 140°F
- NSF 61 listed
