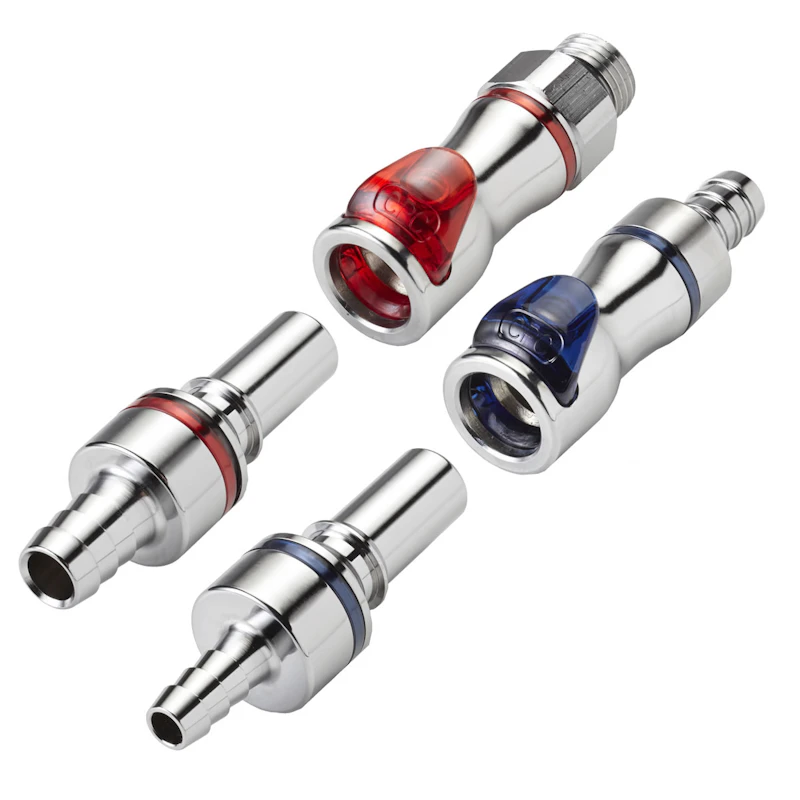

LQ4 Series Chrome-Plated Brass Connectors for Liquid Cooling

LQ4 Series Chrome-Plated Brass Connectors for Liquid Cooling

The LQ4 Series quick disconnect couplings provide ultra-reliable, dripless connections and disconnections that protect valuable electronics. They are designed specifically for liquid cooling applications, and the LQ4 fittings utilize valve technology that eliminates drips and can withstand long-term use. The non-spill design even allows disconnection under pressure. Redundant sealing adds extra protection from leaks. Red and blue color coding provides visual differences in cooling lines. There is no seal friction in the connected state, which allows ultra-reliable protection from drips when disconnecting, even after long periods of being connected. The ruggedness of these couplings makes them able to withstand long-term use. These couplings allow the tubing to move, which eliminates tube kinking.

Chrome-plated brass main housing
Polysulfone valve & thumb latch
SS valve spring & external spring
EPDM seals
Lubricated with Krytox® PFPE
Spillage per disconnect: 0.025 cc at 0 psi, 0.055 cc at 120 psi
Inclusion: 0.025 cc per connect
Maximum flow at disconnect: 3 gallons/minute
Pressure rating: vacuum to 120 psi, 8.3 bar
Temperature range: 0°F to 240°F

Item #	Description	Catalog Pg.	Price
Item 91131	1/4" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Body - Blue (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	87.79/Each In Stock
Item 62618	1/4" Hose Barb LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	87.79/Each In Stock
Item 91135	1/4" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Insert - Blue (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	61.73/Each In Stock
Item 62634	1/4" Hose Barb LQ4 Chrome-Plated Brass Valved Insert - Blue (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	61.73/Each In Stock
Item 91132	1/4" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Body - Red (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	87.79/Each In Stock
Item 62619	1/4" Hose Barb LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	87.79/Each In Stock
Item 91136	1/4" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Insert - Red (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	61.73/Each In Stock
Item 62635	1/4" Hose Barb LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	61.73/Each In Stock
Item 91133	3/8" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Body - Blue (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	87.79/Each In Stock
Item 62620	3/8" Hose Barb LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	87.79/Each In Stock
Item 91137	3/8" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Insert - Blue (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	61.73/Each In Stock
Item 62636	3/8" Hose Barb LQ4 Chrome-Plated Brass Valved Insert - Blue (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	61.73/Each In Stock
Item 91134	3/8" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Body - Red (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	87.79/Each In Stock
Item 62621	3/8" Hose Barb LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 87.79/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	87.79/Each In Stock
Item 91138	3/8" Hose Barb LQ4 Chrome-Plated Brass Locking Valved Insert - Red (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	NEW	61.73/Each In Stock
Item 62637	3/8" Hose Barb LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 61.73/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	61.73/Each In Stock
Item 62612	1/4" NPT LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 99.4/Each Out of Stock (On Order) Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	99.4/Each Out of Stock (On Order)
Item 62638	1/4" NPT LQ4 Chrome-Plated Brass Valved Insert - Blue (Body Sold Separately) 67.35/Each Special Order Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	67.35/Each Special Order
Item 62613	1/4" NPT LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 99.4/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	99.4/Each In Stock
Item 62639	1/4" NPT LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 67.35/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	67.35/Each In Stock
Item 62614	3/8" NPT LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 99.4/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	99.4/Each In Stock
Item 62640	3/8" NPT LQ4 Chrome-Plated Brass Valved Insert - Blue (Body Sold Separately) 67.35/Each Out of Stock (On Order) Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	67.35/Each Out of Stock (On Order)
Item 62615	3/8" NPT LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 99.4/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	99.4/Each In Stock
Item 62641	3/8" NPT LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 67.35/Each Out of Stock (On Order) Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	67.35/Each Out of Stock (On Order)
Item 62616	1/4" ID x 3/8" OD PTF LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 120.74/Each Special Order Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	120.74/Each Special Order
Item 62617	1/4" ID x 3/8" OD PTF LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 120.74/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	120.74/Each In Stock
Item 62632	1/4" ID x 3/8" OD In-Line PTF LQ4 Chrome-Plated Brass Valved Insert - Blue (Body Sold Separately) 88.61/Each Special Order Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	88.61/Each Special Order
Item 62633	1/4" ID x 3/8" OD In-Line PTF LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 88.61/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	88.61/Each In Stock
Item 62622	1/4 SAE-04 LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 92.22/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	92.22/Each In Stock
Item 62642	1/4 SAE-04 LQ4 Chrome-Plated Brass Valved Insert - Blue (Body Sold Separately) 61.05/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	61.05/Each In Stock
Item 62629	1/4 SAE-04 LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 92.22/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	92.22/Each In Stock
Item 62643	1/4 SAE-04 LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 61.05/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	61.05/Each In Stock
Item 62630	3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately) 92.22/Each Out of Stock (On Order) Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	92.22/Each Out of Stock (On Order)
Item 62644	3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Insert -Blue (Body Sold Separately) 59.38/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	59.38/Each In Stock
Item 62631	3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Body - Red (Insert Sold Separately) 92.22/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	92.22/Each In Stock
Item 62645	3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately) 59.38/Each In Stock Save 5% when you buy 2+ Save 10% when you buy 5+ Save 15% when you buy 15+	P-269	59.38/Each In Stock
