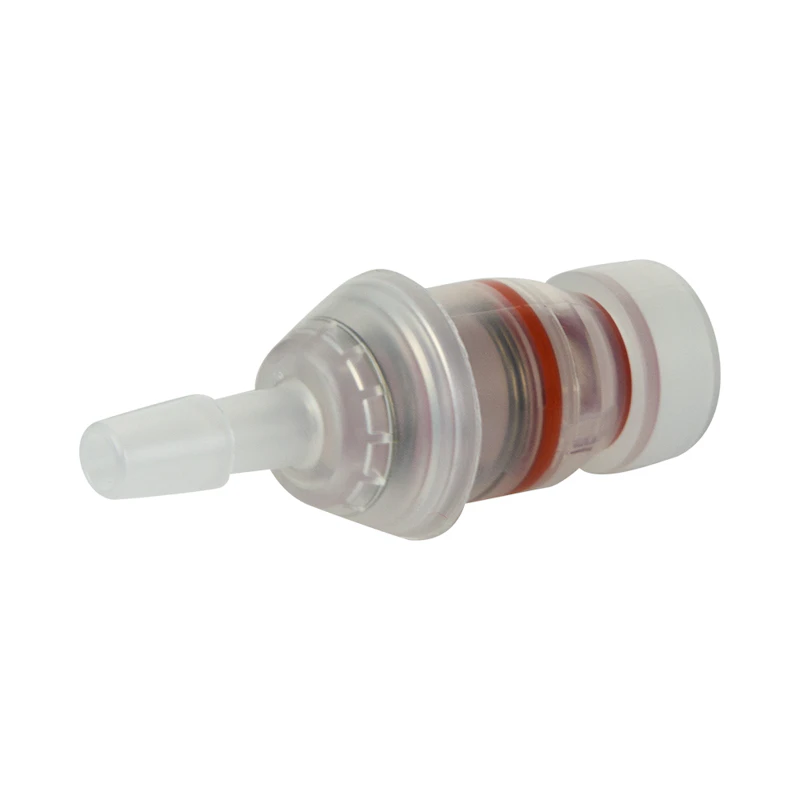

A unique aseptic Spring-Free Flow Path® quick-connect fitting allows a larger volume of fluid to pass through at lower line pressures. This optimized flow reduces restriction, turbidity, foaming, and bubbles. Recessed mating features protect contact surfaces and prolong the life of the O-rings helping to ensure a better seal. The audible click upon connection and the safety slide release are both features to help minimize accidental disconnects. Different body sizes are available to accommodate various connection sizes for hose barb adapters. Additional sizes, materials, flow paths, and end connections are available; contact us for a quote.
- Polypropylene; slide button & main latch: CrystalVu™ PMP copolymer
- Silicone seal & stainless steel spring
- Spring-Free Flow Path™
- Superior single barb technology
- Lubricant: biocompatible & inert PFPE
- Working pressure: vacuum to 100 psi, 6.9 bar
- Temperature range: 32°F to 160°F (0°C to 71°C)
- Sterilization: radiation, EtO, & E-Beam
- Autoclavable at 121°C for at least 30 minutes followed by 15-30 minutes drying time
- USP Class VI & ISO10993 compliant
