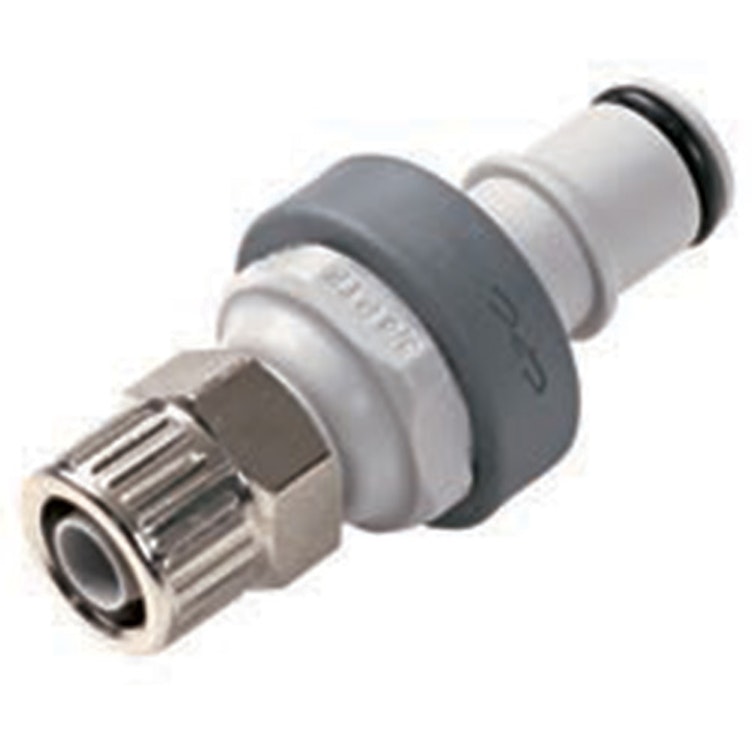

1/4" OD x 0.17" ID In-Line Ferruless NS4 Series Polypropylene Non-Spill Coupling Insert (Body Sold Separately)

1/4" OD x 0.17" ID In-Line Ferruless NS4 Series Polypropylene Non-Spill Coupling Insert (Body Sold Separately)

Item 91159

17.11/Each

Add to Cart

Buy in Quantity & Save!

5% off at 25+	16.2545/Each
10% off at 50+	15.399/Each
15% off at 150+	14.5435/Each

Overview

Patented NS4 Series 1/4" flow couplings feature non-spill valves in a compact size at a high price. Use the NS4 fittings when even a few drops pose problems regarding safety, media cost, or environmental regulations. These innovative couplings are lightweight, chemical resistant, and easy to use. The non-spill design virtually eliminates spills, minimizes downtime, and enhances operator safety. Polypropylene fittings can be special ordered with blue or red overmold; contact us for a quote.

Glass-filled polypropylene main components, valve & thumb latch
Polypropylene have dark gray TPV over mold
Thumb latch: Glass-filled polypropylene
316 SS valve spring & external spring
EPDM O-rings & Krytox™ PFPE lubricant (inert)
Spillage: <0.10 cc per disconnect at all rated pressures
Inclusion: 0.26 cc per connect
Pressure rating: vacuum to 120 psi, 8.3 bar
Temperature range: 32°F to 160°F (0°C to 71°C)
Body & insert sold separately

Item Information

Item Number: 91159

Catalog Page Number: NEW

Manufacturer: CPC™

Manufacturer Part #: NS4D20004

Country of Origin: USA

Tech Specs

Weight: 0.016 lbs
