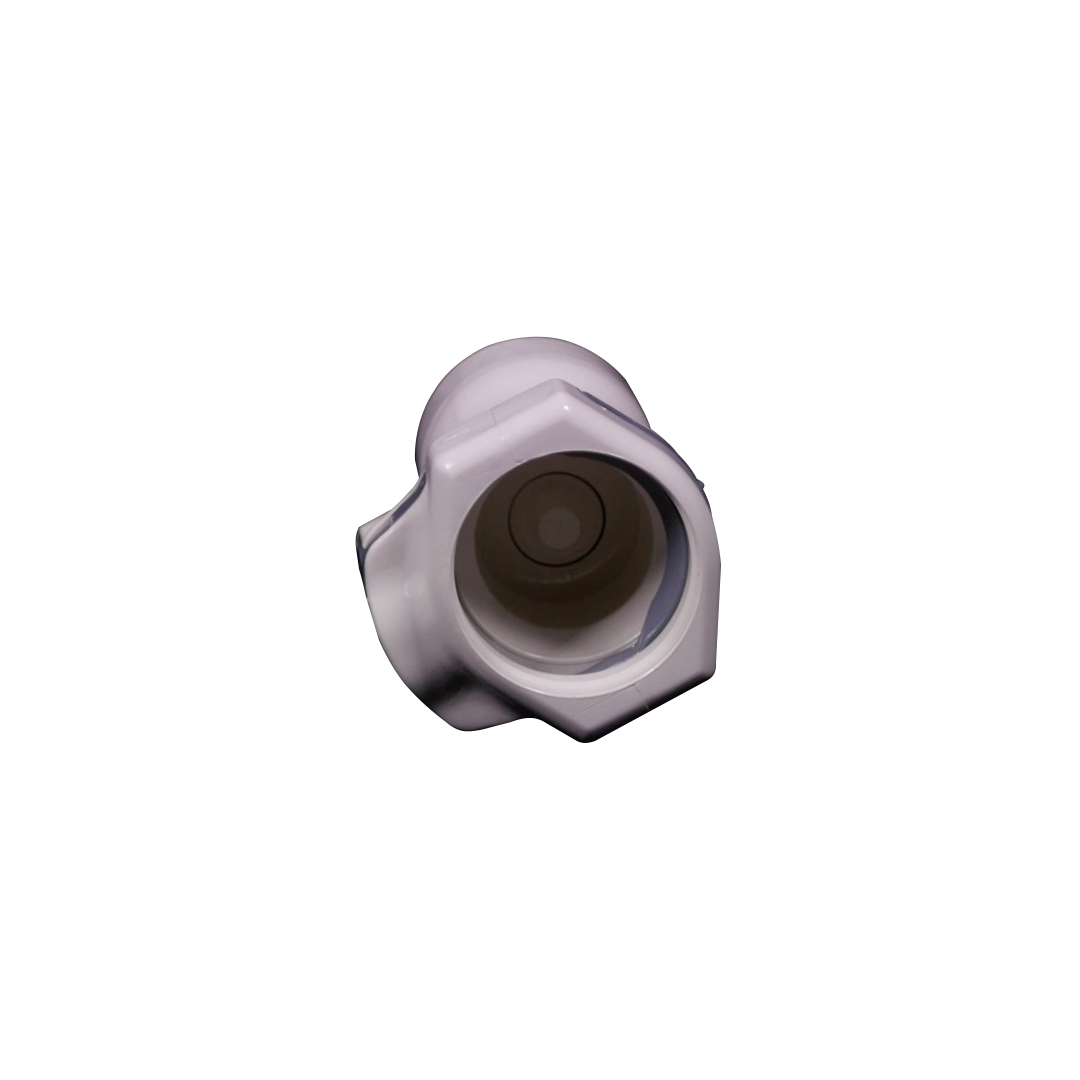

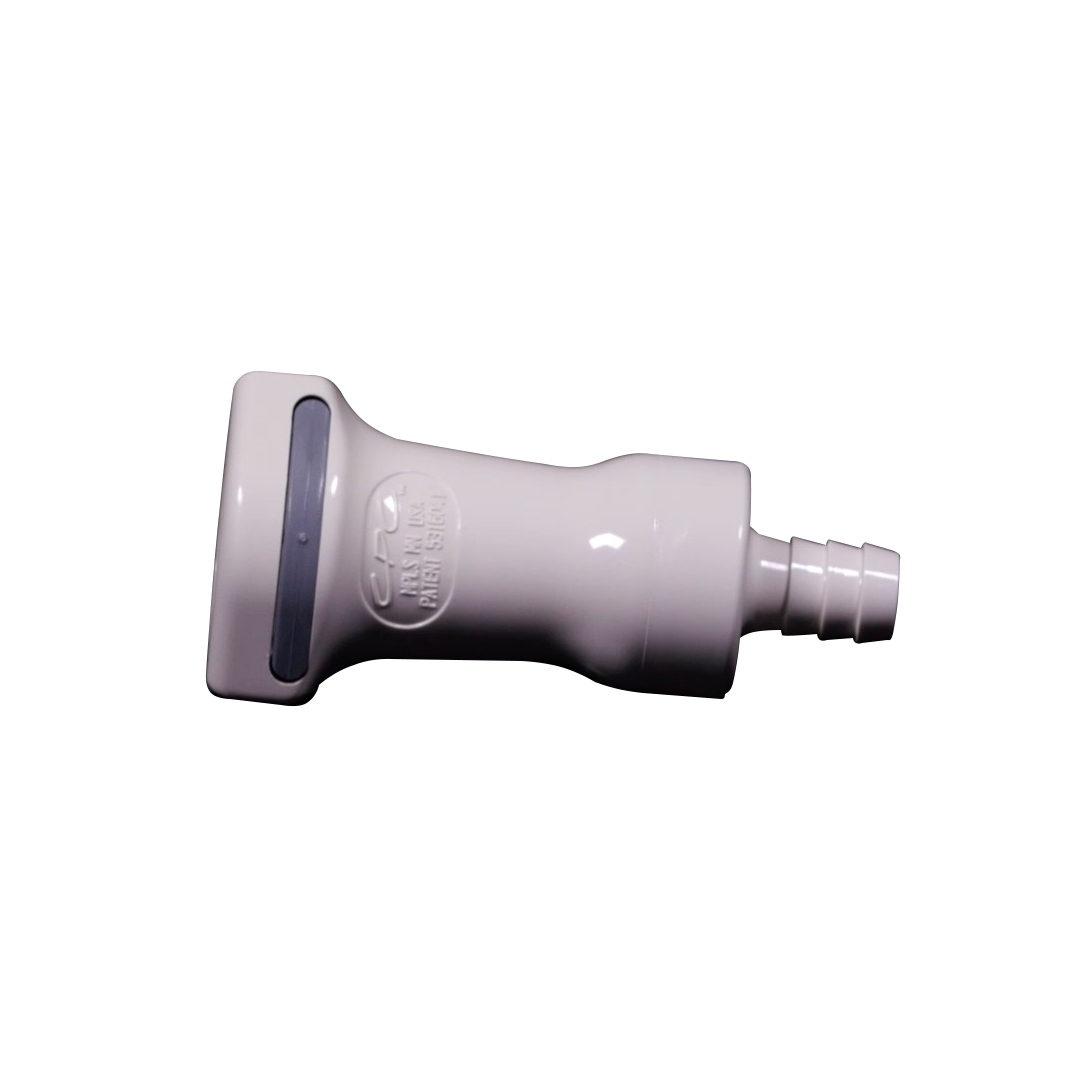

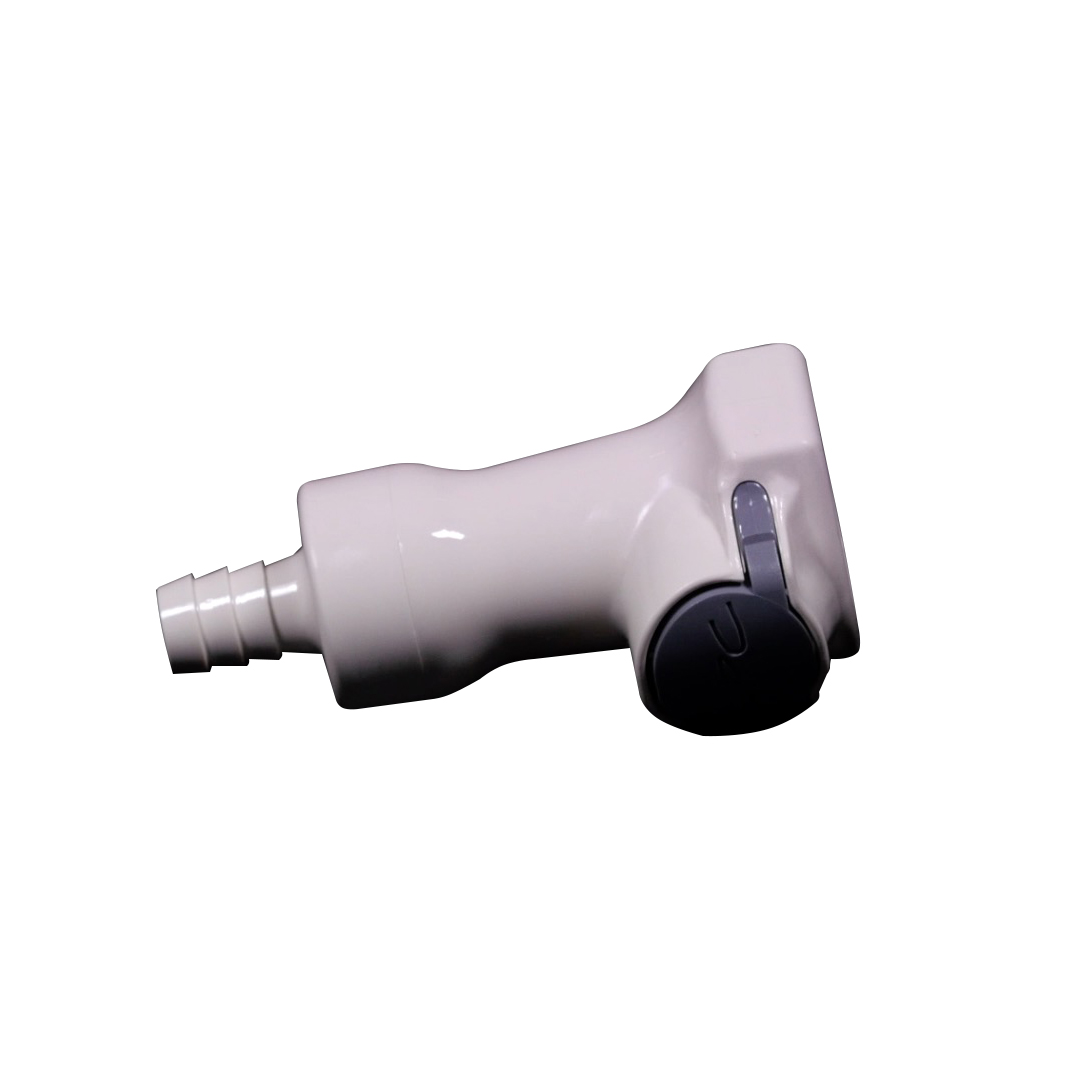

3/8" In-Line Hose Barb HFC 35 Series Polysulfone Coupling Body - Shutoff (Insert Sold Separately)

360 Video

3/8" In-Line Hose Barb HFC 35 Series Polysulfone Coupling Body - Shutoff (Insert Sold Separately)

3/8" In-Line Hose Barb HFC 35 Series Polysulfone Coupling Body - Shutoff (Insert Sold Separately)

3/8" In-Line Hose Barb HFC 35 Series Polysulfone Coupling Body - Shutoff (Insert Sold Separately)

3/8" In-Line Hose Barb HFC 35 Series Polysulfone Coupling Body - Shutoff (Insert Sold Separately)

Item 60670

23.73/Each

Add to Cart

Buy in Quantity & Save!

5% off at 20+	22.5435/Each
10% off at 40+	21.357/Each
15% off at 120+	20.1705/Each

Overview

Patented HFC35 Series Polysulfone couplings can withstand demanding applications and feature physical strength, chemical resistance, and autoclavability. An ergonomic design and a large, shrouded thumb latch produce a coupling that is easy to grip and simple to operate. Efficient valve design leads to high flow and exceptionally low spillage.

White polysulfone with charcoal gray latch
316 SS valve spring & external springs
EPDM O-rings & panel mount gasket
Autoclavable
Pressure rating: vacuum to 125 psi, 8.6 bar
Temperature range: -40°F to 280°F (-40°C to 138°C)
Body dimensions: 2.82" L x 1.44" Hgt.

Videos

360 Video

Item Information

Item Number: 60670

Catalog Page Number: P-258

Manufacturer: CPC™

Manufacturer Part #: HFCD17635

Country of Origin: USA

Tech Specs

Size: 3/8"

Configuration: In-Line Hose Barb Quick Disconnect

Material: Polysulfone

Weight: 0.053 lbs

PDF:Chemical Chart

PDF: Spec Sheet
