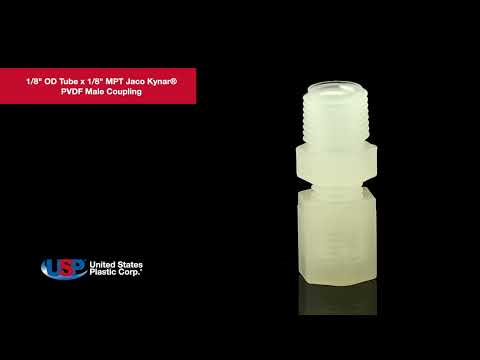

1/8" OD Tube x 1/8" MPT Jaco Kynar® PVDF Male Coupling

360 Video

1/8" OD Tube x 1/8" MPT Jaco Kynar® PVDF Male Coupling

Item 61272

3.3/Each

Add to Cart

Buy in Quantity & Save!

5% off at 100+	3.135/Each
10% off at 200+	2.97/Each
15% off at 600+	2.805/Each

Overview

These compression style fittings are offered in three different resins for a range of applications dealing with temperatures, acids and chemicals. The Kynar® PVDF Jaco fittings are best when used with Kynar® PVDF, PTFE, FEP and PFA tubing. Each fitting is equipped with a plastic gripper for support and these fittings are UV resistant and resistant to many highly corrosive fluids.

Kynar® PVDF
Has a plastic gripper
Resistant to highly corrosive fluids & UV; use Kynar® fittings with Kynar®, PTFE, FEP & PFA tubing
Dimensions: 7/8" L
Hex size: 7/16"
Ferrule nut thread: 5/16-24
Thru hole: 0.109"
Working pressure: 50 psi
Temperature range: -80°F to 275°F
Meets FDA standards & NSF listed

Videos

360 Video

Item Information

Item Number: 61272

Catalog Page Number: P-250

Manufacturer: JACO

Manufacturer Part #: 10-2-2-K-O

Country of Origin: USA

Tech Specs

Material: PVDF

Size: 1/8" x 1/8"

Configuration: Compression x MNPT

Weight: 0.005 lbs
