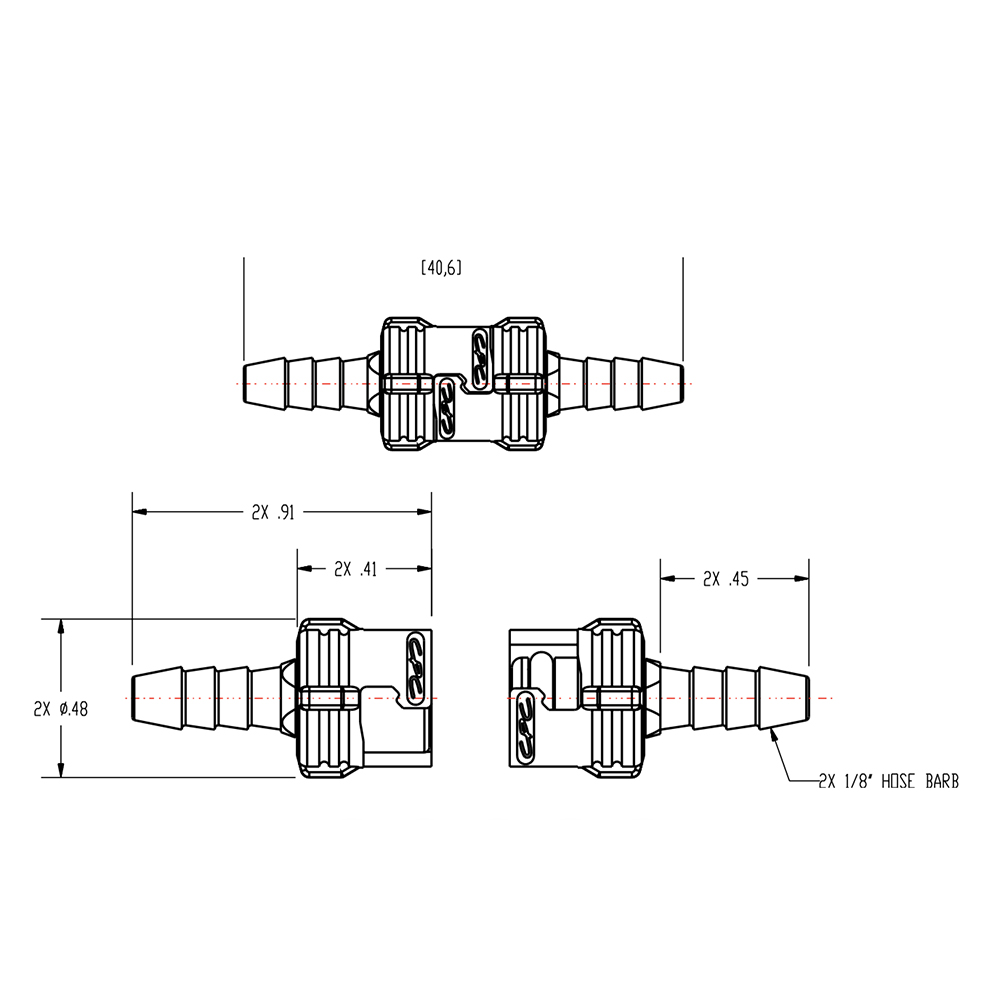

1/8" Hose Barb Acetal In-Line Coupling Set - Straight Thru

1/8" Hose Barb Acetal In-Line Coupling Set - Straight Thru

1/8" Hose Barb Acetal In-Line Coupling Set - Straight Thru

1/8" Hose Barb Acetal In-Line Coupling Set - Straight Thru

Item 64187

5.62/Each

Add to Cart

Buy in Quantity & Save!

5% off at 25+	5.339/Each
10% off at 50+	5.058/Each
15% off at 150+	4.777/Each

Overview

These twist-to-connect couplings provide a reliable and more secure alternative to luer-type connections. They also allow for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use.

Acetal main components
Acetal locking sleeves
Non-valved
316 SS valve spring
Buna-N O-rings
Free coupling rotation eliminates kinked tubing
Pressure rating: vacuum to 100 psi, 6.9 bar
Acetal temperature range: -40°F to 180°F (-40°C to 82°C)

Item Information

Item Number: 64187

Catalog Page Number: P-263

Manufacturer: CPC™

Manufacturer Part #: SMC02

Country of Origin: USA

Tech Specs

Size: 1/8"

Configuration: Hose Barb Quick Disconnect

Material: Acetal

Weight: 0.004 lbs

PDF:Chemical Chart

PDF: SMC Spec Sheet
