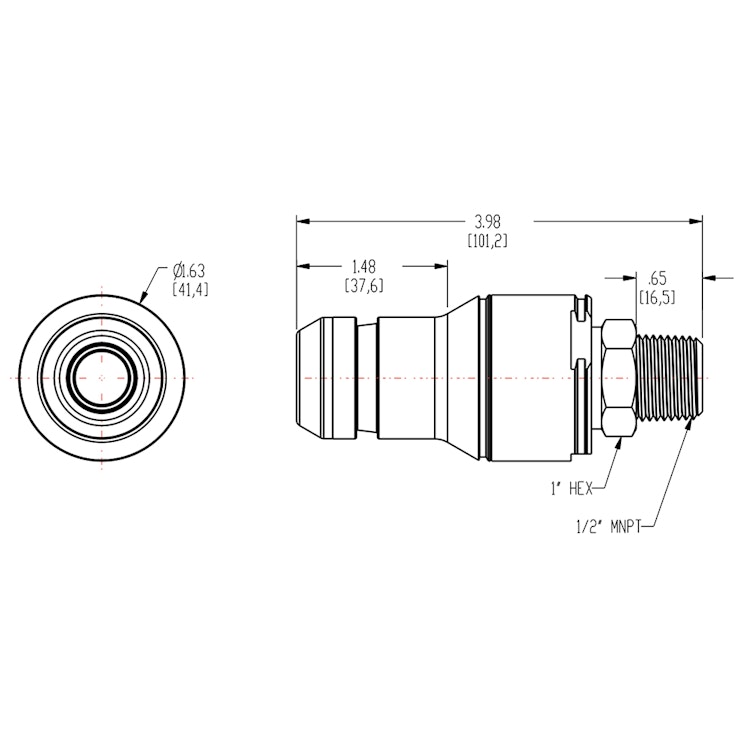

1/2" NPT Valved CPC™ Pipe Thread Non-Spill Coupling Insert (Body Sold Separately)
1/2" NPT Valved CPC™ Pipe Thread Non-Spill Coupling Insert (Body Sold Separately)
1/2" NPT Valved CPC™ Pipe Thread Non-Spill Coupling Insert (Body Sold Separately)

1/2" NPT Valved CPC™ Pipe Thread Non-Spill Coupling Insert (Body Sold Separately)

Item 60752
Out of Stock (On Order)
77.16/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Buy in Quantity & Save!

5% off at 5+73.302/Each
10% off at 10+69.444/Each
15% off at 30+65.586/Each

Overview

NSH non-spill couplings have a metal-free flow path that provides broad chemical resistance and exceptionally high flow capacity, allowing instant disconnects (and reconnects), even under pressure. The all-plastic flow path allows for high flow, low turbulence, and no corrosion. Fittings can be special ordered with blue or red thumb latch and insert tip; contact us for a quote.

  • Glass-filled polypropylene main components
  • EPDM O-rings & 316 SS springs
  • White polypropylene compression nut
  • Non-spill design virtually eliminates spills
  • Minimizes downtime & enhances operator safety
  • Allows you to disconnect under pressure with no spills
  • Pressure-balanced design for failsafe disconnect
  • Easy to reconnect at high pressure
  • Pressure range: vacuum to 120 psi, 8.3 bar
  • Temperature range: 32°F to 120°F (0°C to 49°C)

Item Information

Item Number: 60752
Catalog Page Number: P-254
Manufacturer: CPC™
Manufacturer Part #: NSHD24008
Country of Origin: USA

Tech Specs

Material: Polypropylene
Size: 1/2"
Configuration: MNPT Quick Disconnect
Weight: 0.125 lbs
