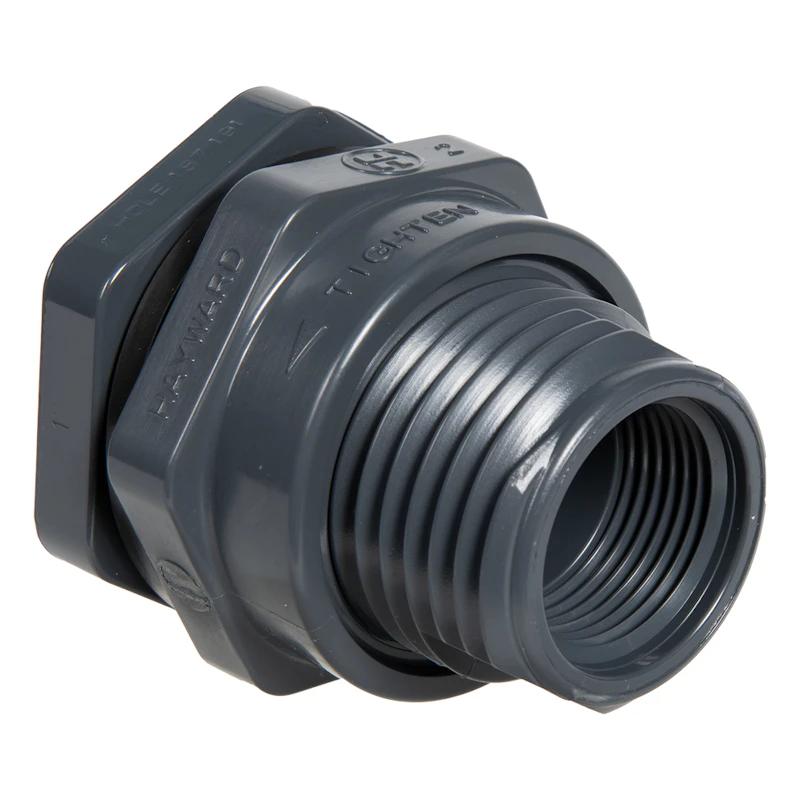

1" Loose Thread x Thread Gray PVC Bulkhead Fitting w/FPM Gasket - 1.88" Hole Size

1" Loose Thread x Thread Gray PVC Bulkhead Fitting w/FPM Gasket - 1.88" Hole Size

Item 16701
Out of Stock (On Order)
47.74/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Buy in Quantity & Save!

5% off at 3+45.353/Each
10% off at 6+42.966/Each
15% off at 18+40.579/Each

Overview

This 1" PVC Bulkhead Fitting has an outside dimension of 2.56" across flats and overall length of 2.88". Maximum tank wall thickness is 1.08". Minimum flexible tank radius is 10.10" and minimum rigid tank radius 11.75". Hole size required is 1.88".

  • PVC
  • FPM gaskets
  • PVC & PP are FNPT x FNPT
  • Buttress threads protect against blowout
  • Hex body for one-person installation
  • Left-hand threads
  • Maximum pressure: 150 psi
  • Temperature range: 60°F to 150°F(PVC)

Item Information

Item Number: 16701
Catalog Page Number: P-321
Manufacturer: Hayward®
Manufacturer Part #: BFAS1010TFS
UPC: 610377137041
Country of Origin: China

Tech Specs

Material: PVC
Size: 1"
Configuration: FNPT
Connection Type: Bulkhead Tank Fitting
Weight: 0.5 lbs
