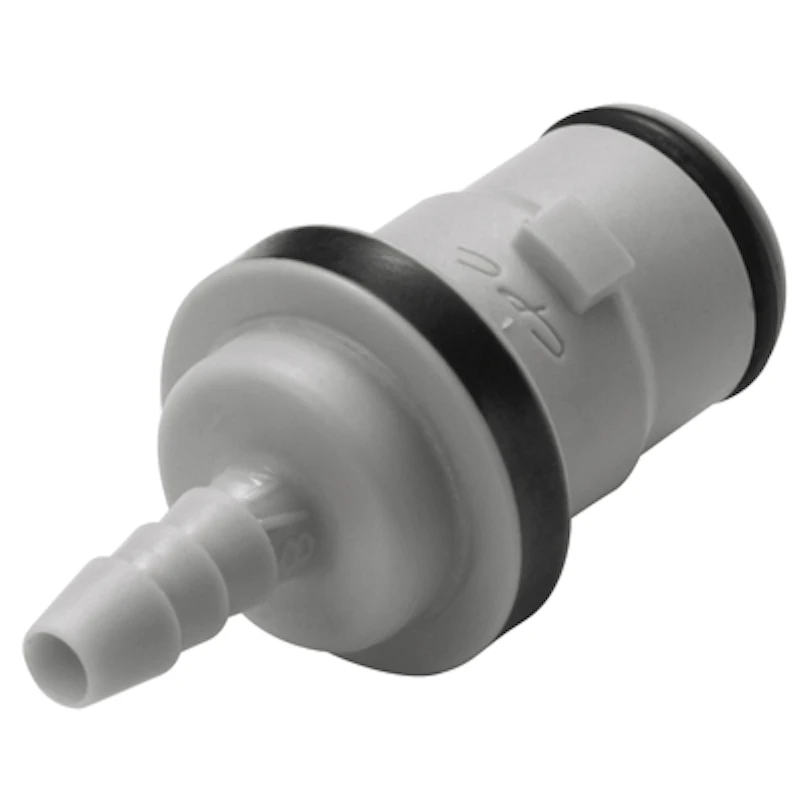

1/8" In-Line Hose Barb NS212 Series Non-Spill Polypropylene Valved Coupling Insert (Body Sold Separately)
1/8" In-Line Hose Barb NS212 Series Non-Spill Polypropylene Valved Coupling Insert (Body Sold Separately)
1/8" In-Line Hose Barb NS212 Series Non-Spill Polypropylene Valved Coupling Insert (Body Sold Separately)

1/8" In-Line Hose Barb NS212 Series Non-Spill Polypropylene Valved Coupling Insert (Body Sold Separately)

Item 65266
In Stock
10.51/Each

Buy in Quantity & Save!

5% off at 5+9.9845/Each
10% off at 10+9.459/Each
15% off at 30+8.9335/Each

Overview

The NS212 is chemically resistant and ideal for a diverse range of applications including printing and ink management, analytical instrumentation, electronic cooling and chemical handling. NS212 Series couplings were built on the company's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. Note: The NS212 line does not mate with the original NS2 parts.

  • Glass-filled polypropylene main components
  • EPDM seal & 316 SS valve spring
  • Easy, twist-to-connect coupling; Integrated locking mechanism
  • Double-sided, non-spill shutoff valves
  • Provide high-flow fluid transfer in a small footprint
  • Tube ID: 1/8" ; Metric: 3.2mm
  • Spillage: <0.025 cc/disconnect
  • Inclusion: 0.009 cc/connect
  • Pressure rating: Vacuum to 45 psi, 3.1 bar
  • Temperature range: 32°F to 120°F (0°C to 49°C)

Item Information

Item Number: 65266
Catalog Page Number: P-253
Manufacturer: CPC™
Manufacturer Part #: NS2D220212
Country of Origin: USA

Tech Specs

Material: Polypropylene
Size: 1/8"
Configuration: In-Line Hose Barb Quick Disconnect
Weight: 0.005 lbs
