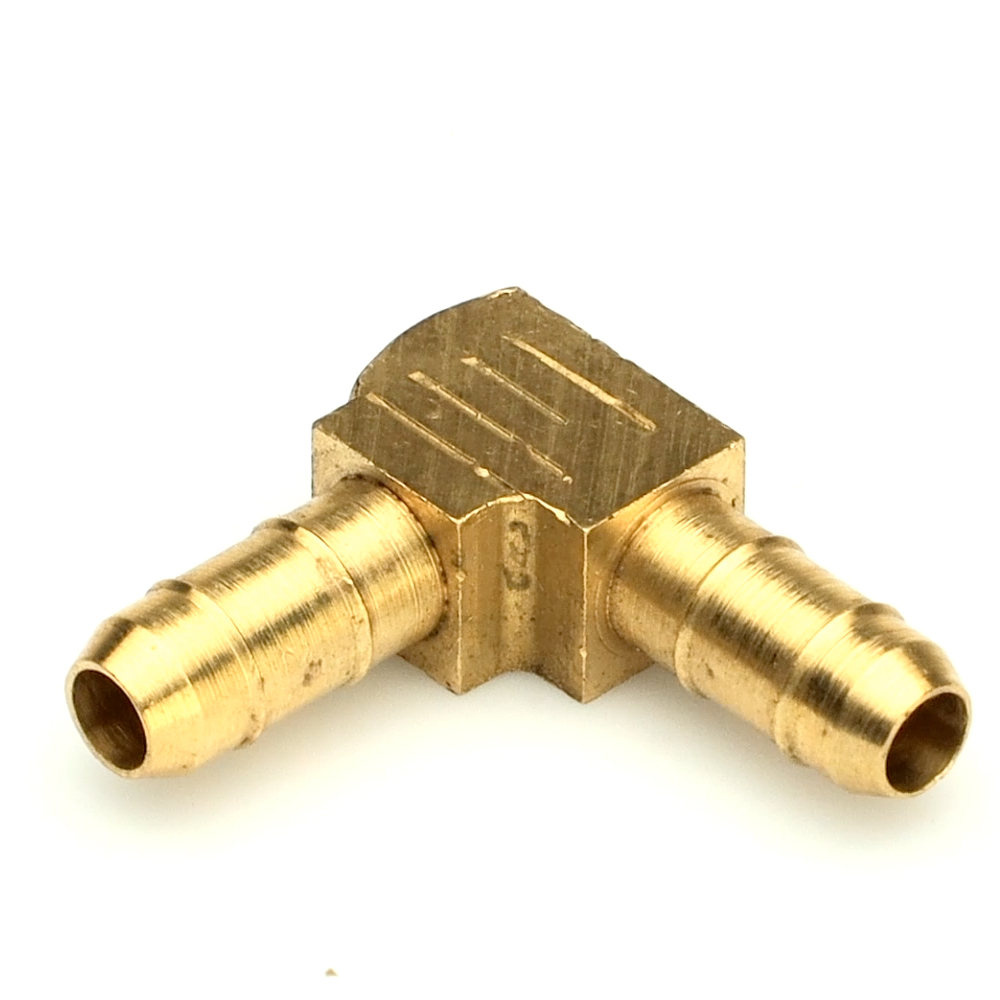

0.170" ID Tube x 0.170" ID Tube Dubl-Barb® Brass Union Elbow

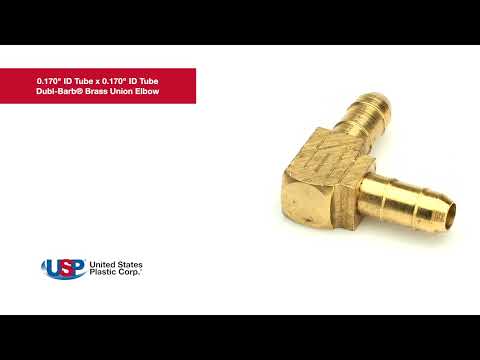

360 Video
360 Video
0.170" ID Tube x 0.170" ID Tube Dubl-Barb® Brass Union Elbow
0.170" ID Tube x 0.170" ID Tube Dubl-Barb® Brass Union Elbow
0.170" ID Tube x 0.170" ID Tube Dubl-Barb® Brass Union Elbow

0.170" ID Tube x 0.170" ID Tube Dubl-Barb® Brass Union Elbow

Item 61859
In Stock
3.85/Each

Buy in Quantity & Save!

5% off at 10+3.6575/Each
10% off at 20+3.465/Each
15% off at 60+3.2725/Each

Overview

A compact, one-piece, push-on hose barbed fitting for a quick, economical way to connect polyethylene tubing. Assembly Instructions: Cut tube squarely and push it over the two barbs. They are perfect in pneumatic and environmental control. Ideal applications are pneumatic systems, climate control, humidifiers, and filters.

  • Designed for use with polyethylene tubing
  • Pressure rating: up to 150 psi
  • Temperature range: -65°F to 90°F
  • Dimensions: 0.63" centerline to end
  • Flow diameter: 0.120"

Videos

360 Video
360 Video

Item Information

Item Number: 61859
Catalog Page Number: Internet Only
Manufacturer: Parker Hannifin
Manufacturer Part #: 225-4-4
Country of Origin: USA

Tech Specs

Configuration: Hose Barb x Hose Barb
Material: Brass
Weight: 0.01 lbs
