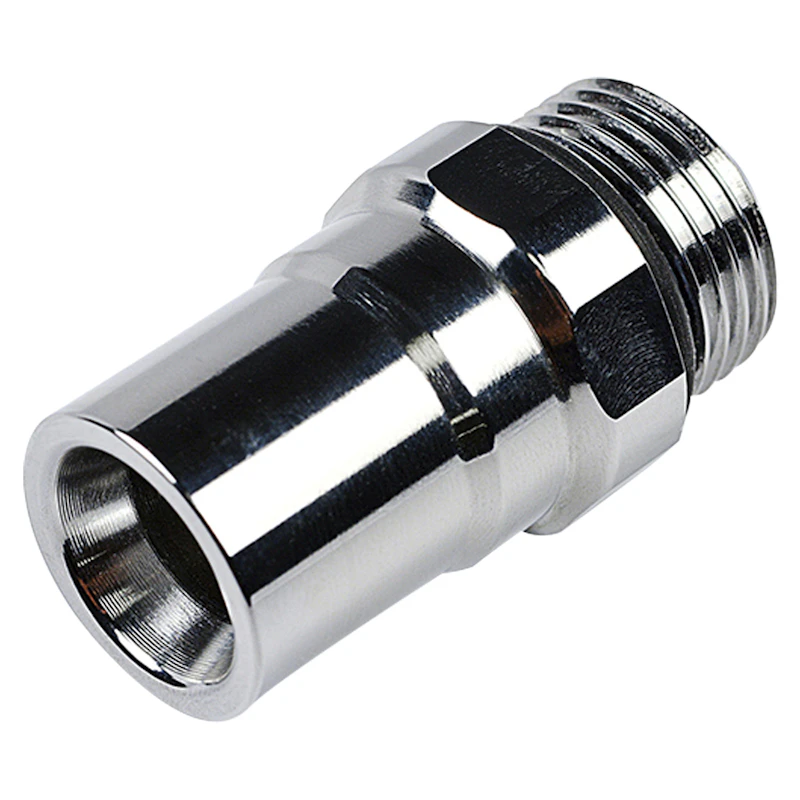

SAE-8 BLQ4 Chrome-plated Brass Valve Body (Insert Sold Separately)

Item 63490
62.53/Each

Buy in Quantity & Save!

5% off at 2+59.4035/Each
10% off at 5+56.277/Each
15% off at 15+53.1505/Each

Overview

BLQ4 series quick disconnect couplings provide ultra-reliable, dripless connections and disconnections that protect valuable electronics—explicitly designed for rack-mounted liquid cooling applications. A friction-free valve eliminates drips and can withstand long-term use.

  • Chrome-plated brass main housing & polysulfone valve
  • Stainless steel valve spring & external spring
  • EPDM seals & Lubricated with Krytox® PFPE
  • Dimensions: 0.90" Dia. x 1.60" L
  • Max. flow at disconnect: 3.0 gal/min, 11.3L/min
  • Spillage per disconnect: <0.025cc at 0 psi, <0.055cc at 120 psi
  • Inclusion: <0.025cc per connect
  • Coupling must be within 1/8" of fully engaged to achieve maximum flow
  • Pressure rating: 120 psi, 8.3 bar
  • Temperature range: 0°F to 240°F

Item Information

Item Number: 63490
Catalog Page Number: P-269
Manufacturer: CPC™
Manufacturer Part #: BLQ4D30008
Country of Origin: USA

Tech Specs

Material: Chrome-plated Brass
Configuration: SAE-08
Weight: 0.136 lbs
