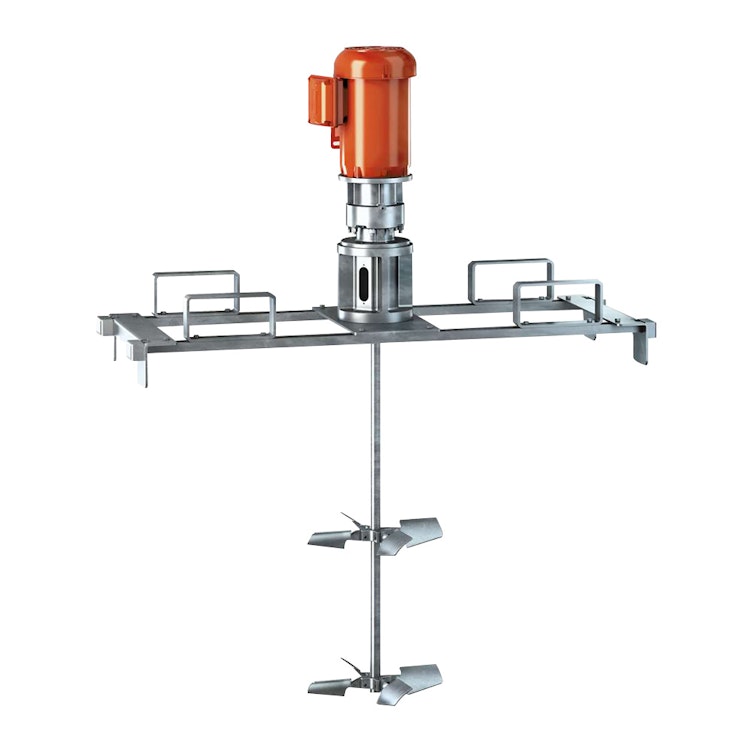

These mixers feature collapsible impellers for easy installation through small openings while ensuring efficient mixing in tote containers. Ideal for totes with a 6" center cap (IBC), the bridge mount secures the bridge to any tote. Our unique collapsible impeller technology enables overall mixing previously impossible in tote containers. These mixers overcome the traditional 6" opening, enabling up to 21" in diameter impeller; a large blade provides the pumping and tank turnover required to bring your product back into specification. They are a popular choice for mixers as they are truly portable industrial mixers. Cycloidal gearboxes (25237 & 25238) are in contact with 80% of the driving surface. These gearboxes are known for their high torque density and extreme shock load capacity and offer a substantially stronger option than standard helical gearboxes.
- Electric Motor 1 hp @ 1725 rpm TEFC
- Electric Phase: 1/60/110V-220V
- Gear Box: Gear Reducer 11 to 1 Ratio @ 159 rpm
- Shaft Dia.: 1"
- Impellar Type: Collapsible Dynaflow
- Impellar Dia.: 13"
- Max. Viscosity: 2000 cps
- Max. Mixer Shaft RPM: 159
- 316SS Shaft & Impellers
- Bridge mount expands to 60"
