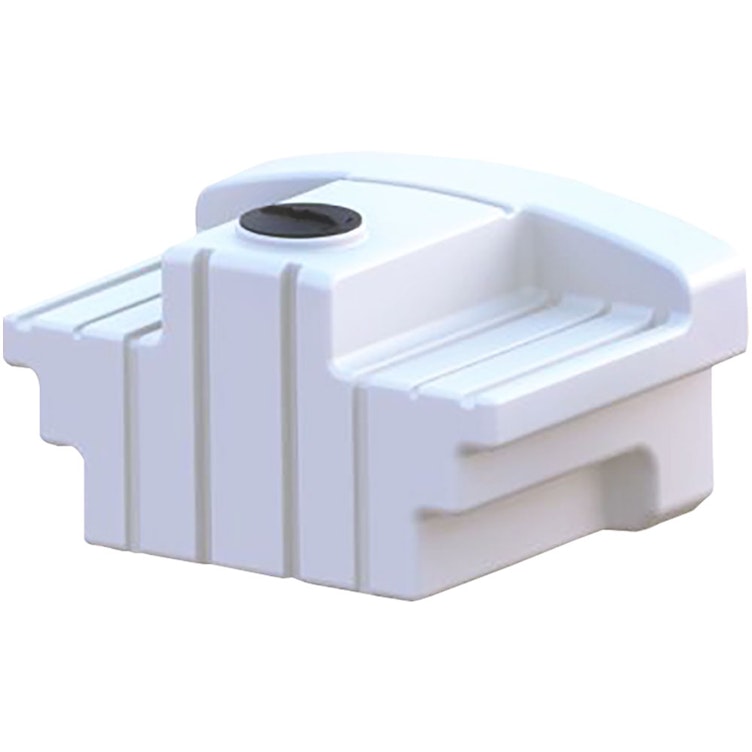

These tanks feature a space-saving design for pick-up truck beds, offering indoor and outdoor usability for stationary or transportable applications. Engineered to fit truck beds with a minimum of 29" in length (front to back), 48" between wheel wells, and 60" between bed rails, the tank is ideal for hauling chemicals, water, or other liquids. Each tank features wheel well recesses on each side and ribs and inserts on the top sides to support metal support structures for an engine driven pump and hose reel assemblies. Note: The tank is designed to contain chemicals rated for contact with polyethylene; consult the user guide for known compatible chemicals and service temperatures. Check vehicle load capacity recommendations or ratings from the vehicle manufacturer before installing. Additional colors and fittings are available; contact us for a quote.
- HDPE with UV stabilizers
- Graduated with gallon indicators on one end of the tank for monitoring liquid levels
- 12" vented lid assembly & lanyard
- Features wheel well recesses & ribs & inserts on the top sides
- The tank bottom must be fully supported for optimal use
- Minimum truck bed dimensions: 29" L front to back x 48" between wheel wells x 60" between bed rails
- Tank dimensions: 69.5" L x 51.38" W x 42.48" Hgt. w/ Lid
- Maximum specific gravity: 1.7
- NSF/ANSI 61 certified
- Meets FDA standards
