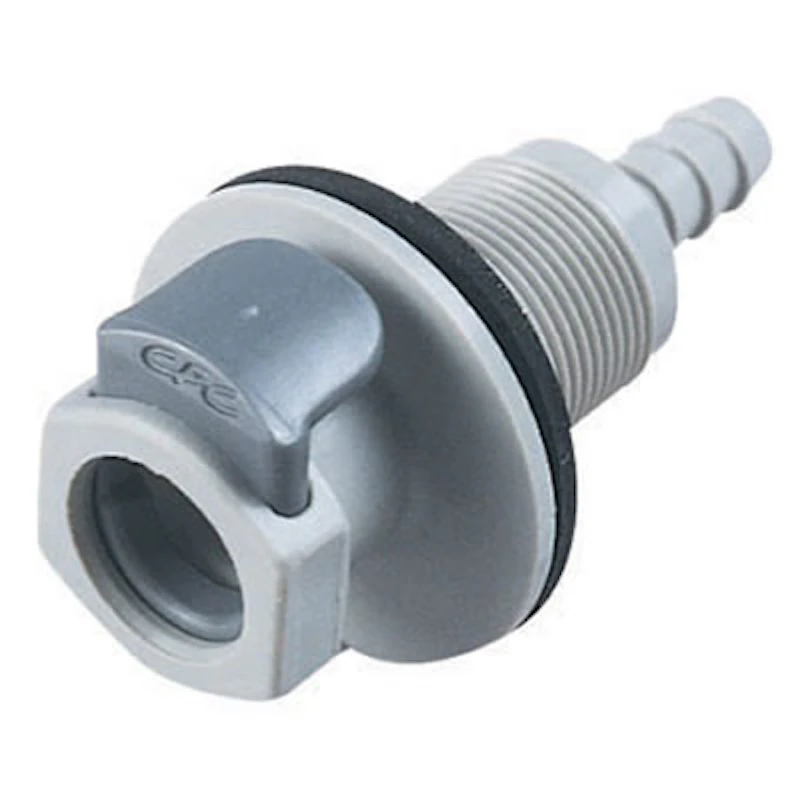

1/4" In-Line Hose Barb EFC Series Bulkhead Panel Mount Body - Shutoff (Insert Sold Separately)

1/4" In-Line Hose Barb EFC Series Bulkhead Panel Mount Body - Shutoff (Insert Sold Separately)

Item 60655

23.49/Each

Add to Cart

Buy in Quantity & Save!

5% off at 10+	22.3155/Each
10% off at 20+	21.141/Each
15% off at 60+	19.9665/Each

Overview

The 9/32" flow EFC12 Series couplings feature a high-efficiency valve-design that provides a greater flow capacity than any other coupling its size. The chemical resistant polypropylene material makes it perfect for harsh environments. Applications: Filling and drain lines, chemical dispensing, and peristaltic pump lines.

Polypropylene main components, valve & thumb latch
316 SS valve spring & 302 SS external spring; EPDM O-rings & panel mount gaskets
Ideal for harsh environments
Bulkhead panel mount option available
More flow than PLC Series in a compact size
Plastic thumb latch with fewer moving parts
Mates with most APC couplings
Pressure rating: vacuum to 105 psi, 7.2 bar
Temperature range: 32°F to 160°F (0°C to 71°C)
Body & insert sold separately

Item Information

Item Number: 60655

Catalog Page Number: P-261

Manufacturer: CPC™

Manufacturer Part #: EFCD16412

Country of Origin: USA

Tech Specs

Material: Polypropylene

Size: 1/4"

Configuration: In-Line Hose Barb Quick Disconnect

Weight: 0.028 lbs

PDF:Chemical Chart

PDF: EFC12 Series Spec Sheet
