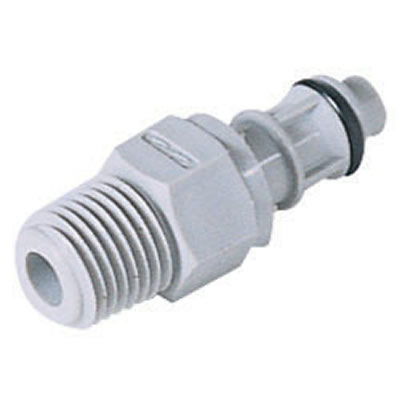

1/4" MNPT EFC Series Pipe Thread Insert - Shutoff (Body Sold Separately)
1/4" MNPT EFC Series Pipe Thread Insert - Shutoff (Body Sold Separately)
1/4" MNPT EFC Series Pipe Thread Insert - Shutoff (Body Sold Separately)

1/4" MNPT EFC Series Pipe Thread Insert - Shutoff (Body Sold Separately)

Item 60659
Out of Stock (On Order)
16.06/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Buy in Quantity & Save!

5% off at 10+15.257/Each
10% off at 20+14.454/Each
15% off at 60+13.651/Each

Overview

The 9/32" flow EFC12 Series couplings feature a high-efficiency valve-design that provides a greater flow capacity than any other coupling its size. The chemical resistant polypropylene material makes it perfect for harsh environments. Applications: Filling and drain lines, chemical dispensing, and peristaltic pump lines.

  • Polypropylene main components, valve & thumb latch
  • 316 SS valve spring & 302 SS external spring; EPDM O-rings & panel mount gaskets
  • Ideal for harsh environments
  • Bulkhead panel mount option available
  • More flow than PLC Series in a compact size
  • Plastic thumb latch with fewer moving parts
  • Mates with most APC couplings
  • Pressure rating: vacuum to 105 psi, 7.2 bar
  • Temperature range: 32°F to 160°F (0°C to 71°C)
  • Body & insert sold separately

Item Information

Item Number: 60659
Catalog Page Number: P-261
Manufacturer: CPC™
Manufacturer Part #: EFCD24412
Country of Origin: USA

Tech Specs

Material: Polypropylene
Size: 1/4"
Configuration: MNPT Quick Disconnect
Weight: 0.008 lbs
