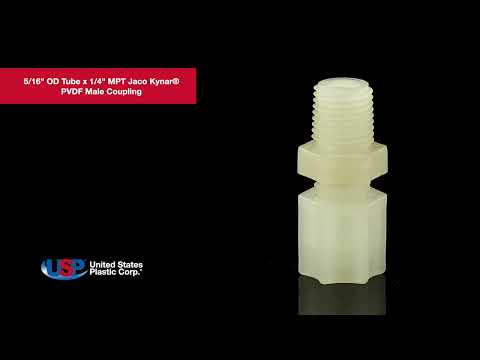

5/16" OD Tube x 1/4" MPT Jaco Kynar® PVDF Male Coupling

360 Video

5/16" OD Tube x 1/4" MPT Jaco Kynar® PVDF Male Coupling

Item 61277

4.48/Each

Add to Cart

Buy in Quantity & Save!

5% off at 100+	4.256/Each
10% off at 200+	4.032/Each
15% off at 600+	3.808/Each

Overview

These compression style fittings are offered in three different resins for a range of applications dealing with temperatures, acids and chemicals. The Kynar® PVDF Jaco fittings are best when used with Kynar® PVDF, PTFE, FEP and PFA tubing. Each fitting is equipped with a plastic gripper for support and these fittings are UV resistant and resistant to many highly corrosive fluids.

Kynar® PVDF
Has a plastic gripper
Resistant to highly corrosive fluids & UV; use Kynar® fittings with Kynar®, PTFE, FEP & PFA tubing
Dimensions: 1-3/16" L
Hex size: 31/64"
Nut thread: 1/2-20
Thru hole: 0.232"
Working pressure: 220 psi
Temperature range: -80°F to 275°F
Meets FDA standards & NSF listed

Videos

360 Video

Item Information

Item Number: 61277

Catalog Page Number: P-250

Manufacturer: JACO

Manufacturer Part #: 10-5-4-K-PG

Country of Origin: USA

Tech Specs

Material: PVDF

Size: 5/16" x 1/4"

Configuration: Compression x MNPT

Weight: 0.02 lbs
