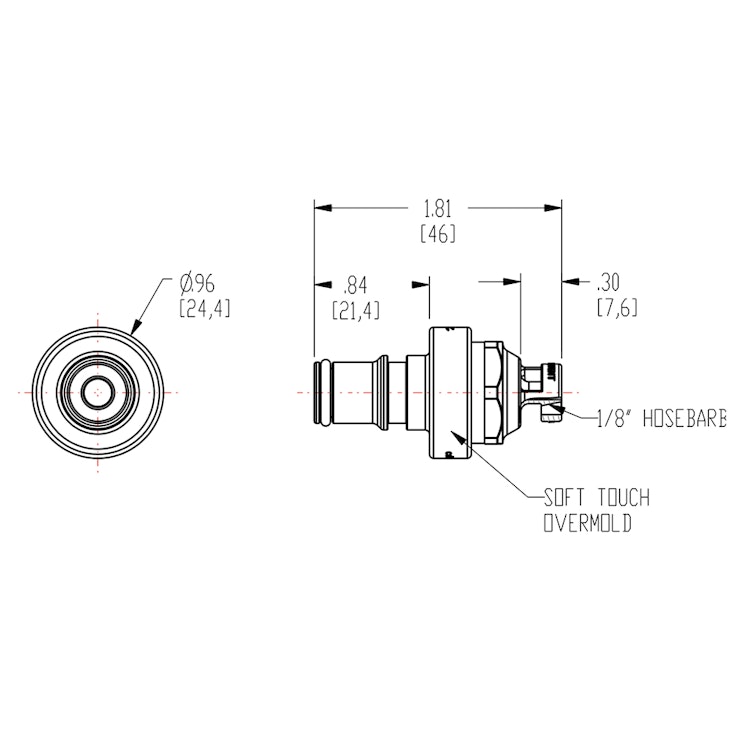

1/8" ID In-Line Hose Barb NS4 Series Polypropylene Non-Spill Coupling Insert (Body Sold Separately)

1/8" ID In-Line Hose Barb NS4 Series Polypropylene Non-Spill Coupling Insert (Body Sold Separately)

1/8" ID In-Line Hose Barb NS4 Series Polypropylene Non-Spill Coupling Insert (Body Sold Separately)

1/8" ID In-Line Hose Barb NS4 Series Polypropylene Non-Spill Coupling Insert (Body Sold Separately)

Item 60723

15.09/Each

Add to Cart

Buy in Quantity & Save!

5% off at 25+	14.3355/Each
10% off at 50+	13.581/Each
15% off at 150+	12.8265/Each

Overview

Patented NS4 Series 1/4" flow couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically-resistant and easy to use. The non-spill design virtually eliminates spills, minimizes downtime and enhances operator safety. Polypropylene can be special ordered with blue or red over mold. Contact us for quote.

Glass-filled polypropylene main components, valve & thumb latch
Polypropylene have dark gray TPV over mold
Thumb latch: Glass-filled polypropylene
316 SS valve spring & external spring
EPDM O-rings & Krytox™ PFPE lubricant (inert)
Spillage: <0.10 cc per disconnect at all rated pressures
Inclusion: 0.26 cc per connect
Pressure rating: vacuum to 120 psi, 8.3 bar
Temperature range: 32°F to 160°F (0°C to 71°C)
Body & insert sold separately

Item Information

Item Number: 60723

Catalog Page Number: P-252

Manufacturer: CPC™

Manufacturer Part #: NS4D22002

Country of Origin: USA

Tech Specs

Material: Polypropylene

Size: 1/8"

Configuration: In-Line Hose Barb Quick Disconnect

Weight: 0.015 lbs

PDF:Chemical Chart

PDF: Spec Sheet
