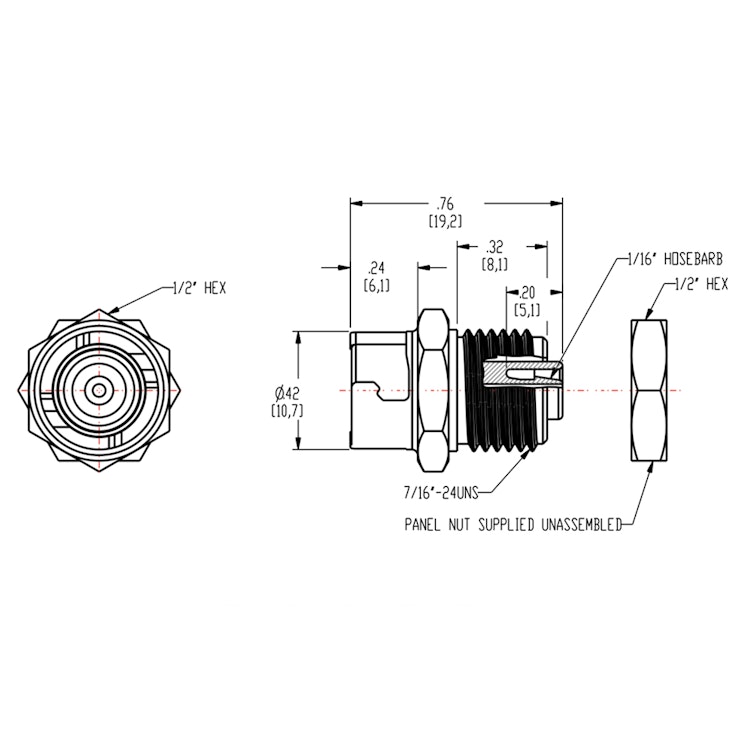

1/16" Hose Barb Polypropylene Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb Polypropylene Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb Polypropylene Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb Polypropylene Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb Polypropylene Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

Item 65240

5.03/Each

Add to Cart

Buy in Quantity & Save!

5% off at 25+	4.7785/Each
10% off at 50+	4.527/Each
15% off at 150+	4.2755/Each

Overview

These twist-to-connect couplings provide a reliable and more secure alternative to luer-type connections. They also allow for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use. NOTE: Bodies and insert sold separately unless marked as "Coupling Set". Hose barbs fittings are measured by tubing ID.

Polypropylene main components
Acetal locking sleeves
Non-valved
EPDM O-rings
Free coupling rotation eliminates kinked tubing
Pressure rating: vacuum to 100 psi, 6.9 bar
Polypropylene temperature range: 32°F to 180°F (0°C to 82°C)

Item Information

Item Number: 65240

Catalog Page Number: P-263

Manufacturer: CPC™

Manufacturer Part #: SMFPM0112

Country of Origin: USA

Tech Specs

Material: Polypropylene

Size: 1/16"

Configuration: Hose Barb Quick Disconnect

Weight: 0.005 lbs

PDF:Chemical Chart

PDF: SMC Spec Sheet
