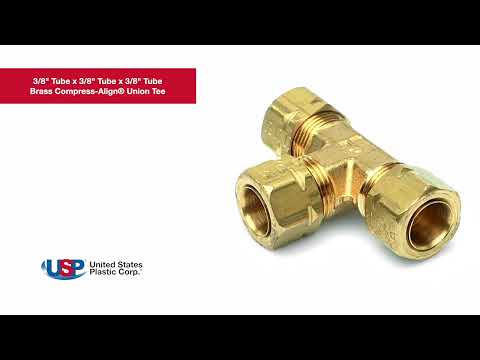

Compress-Align fittings require no flaring, soldering, or other preparation of tubing. The captive sleeve orients for correct installation, visible for inspection before and after installation. The fittings are universal in markets like industrial, packaging, pneumatic, printing, and chemical. Applications include airlines, lubrication lines, fluid transfer, chemical dispensing, cooling lines, and machine tools. Assembly Instructions: With nut finger tight on the body, insert the tubing until it bottoms in the fitting. Complete the seal with one wrench turn on all sizes.
- Brass fitting & nut
- Captive sleeve
- Use with copper, aluminum, TFE, FEA, PFA & thermoplastic tubing
- UL listed for flammable liquids
- For water, air, inert & non-combustible gasses
- NPTF thread
- Pressure ratings: 2,800 psi (1/8"), 1,900 psi (3/16"), 1,400 psi (1/4"), 1,000 psi (3/8") & 750 ps
- Temperatures range: -65°F to 250°F
- Dimensions: 1.92" long; 0.96" centerline to end on all ends
- Flow diameter: 0.312"; compression end has 9/16-24 straight thread
