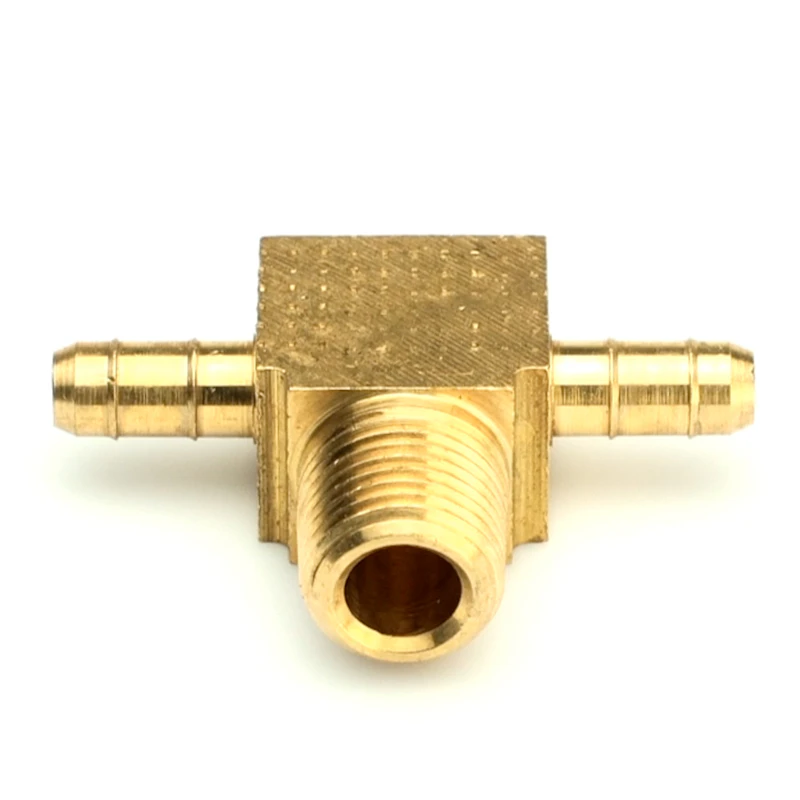

0.170" ID Tube x 1/8" MNPT Dubl-Barb® Brass Male Branch Tee
360 Video
360 Video
0.170" ID Tube x 1/8" MNPT Dubl-Barb® Brass Male Branch Tee
0.170" ID Tube x 1/8" MNPT Dubl-Barb® Brass Male Branch Tee
0.170" ID Tube x 1/8" MNPT Dubl-Barb® Brass Male Branch Tee

0.170" ID Tube x 1/8" MNPT Dubl-Barb® Brass Male Branch Tee

Item 61865
In Stock
9.57/Each

Buy in Quantity & Save!

5% off at 10+9.0915/Each
10% off at 20+8.613/Each
15% off at 60+8.1345/Each

Overview

A compact, one-piece, push-on hose barbed fitting for a quick, economical way to connect polyethylene tubing. Assembly Instructions: Cut the tube squarely and push it over the two barbs. They are perfect in pneumatic and environmental control. Ideal applications are pneumatic systems, climate control, humidifiers, and filters.

  • Designed for use with polyethylene tubing
  • Pressure rating: up to 150 psi
  • Temperature range: -65°F to 90°F
  • Dimensions: 1.38" long x 0.69" centerline to end on top x 0.66" centerline to end on side
  • Flow diameter: 0.120"

Videos

360 Video
360 Video

Item Information

Item Number: 61865
Catalog Page Number: Internet Only
Manufacturer: Parker Hannifin
Manufacturer Part #: 232-4-2
Country of Origin: USA

Tech Specs

Configuration: Hose Barb x MNPT
Material: Brass
Weight: 0.041 lbs
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
